High Pressure Multistage Pumps OMK

Description:
•    HMK series pumps have horizontal axis.
•    Pump impellers are dynamically balanced, single-entry and closed type. The impeller is situated between bearings on either side at HMK series.
•    Back wear rings can be changed if necessary.
•    Both series are consists of 5 types which are 32,40,50,65 and 80. Stage number varies between 2 to 14 at HMK series.
•    Suction and discharge flanges are PN40 compatible with DIN 2535 at HMK series. BS, ANSI or other standart flange sizes can be obtained if necesssary.
•    Standart assembly has the discharge flange at the motor end with disharge flange facing upwords and suction flange and the dead end facing towards rigth and rotating clockwise at HMK series. Alternative assembly is possible upon request.
Fields of Application
•    • Water supply systems.
•    • Booster sets in high rise buildings and industry.
•    • Water treatment sytems
•    • Industrial washdown systems.
•    • Fire extinguishing plants.
•    • Boiler feed and condensation process.
•    • Sanitary and cleaning installations.
•    • For industrial applications and public services.
•    • Water distribution services.
•    • Industrial applications.
•    • Shipbuilding, Mining, Power Stations, Filter Units.
•    • Irrigation plants.
•    • Central heating systems.

Pumped Liquids
Thin, clean, non-aggressive and non-explosive liquids free from solid particles and fibres.
Fresh water, potable water, boiler feed water, industrial water, sea and brackish water, hot water,
condensate, lye, etc.
For special applications, please consult us.

Design
The HMK Pump is a horizontal axis, radially split, ring section design multistage centrifugal pump of non-self priming type.
Impellers are between bearings, single entry, closed type and dynamically balanced. Impeller diameter will be corrected for optimal adherence to the required duty point.
The axial thrust is relieved by relieving boreholes in each impeller. The remaining thrust can be borne by large-sized bearings.

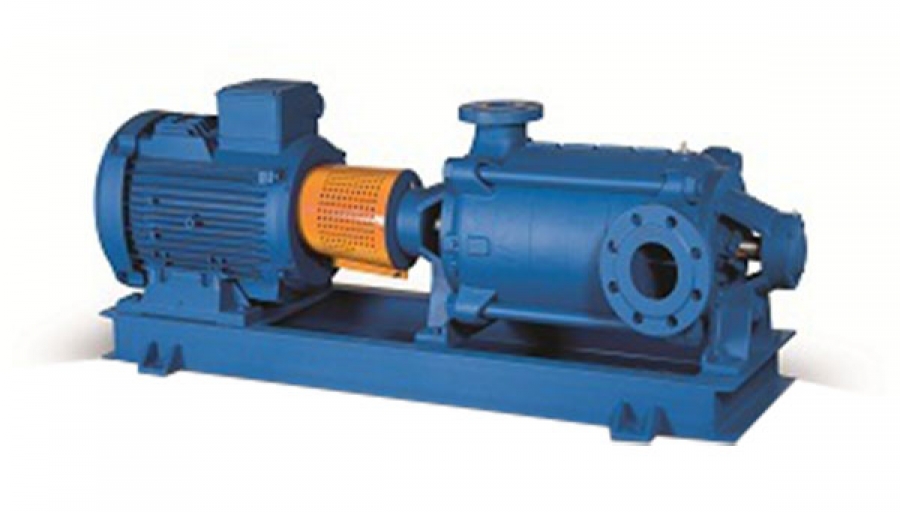

Pump and motor are fitted on a common base plate and connected to each other via flexible coupling.

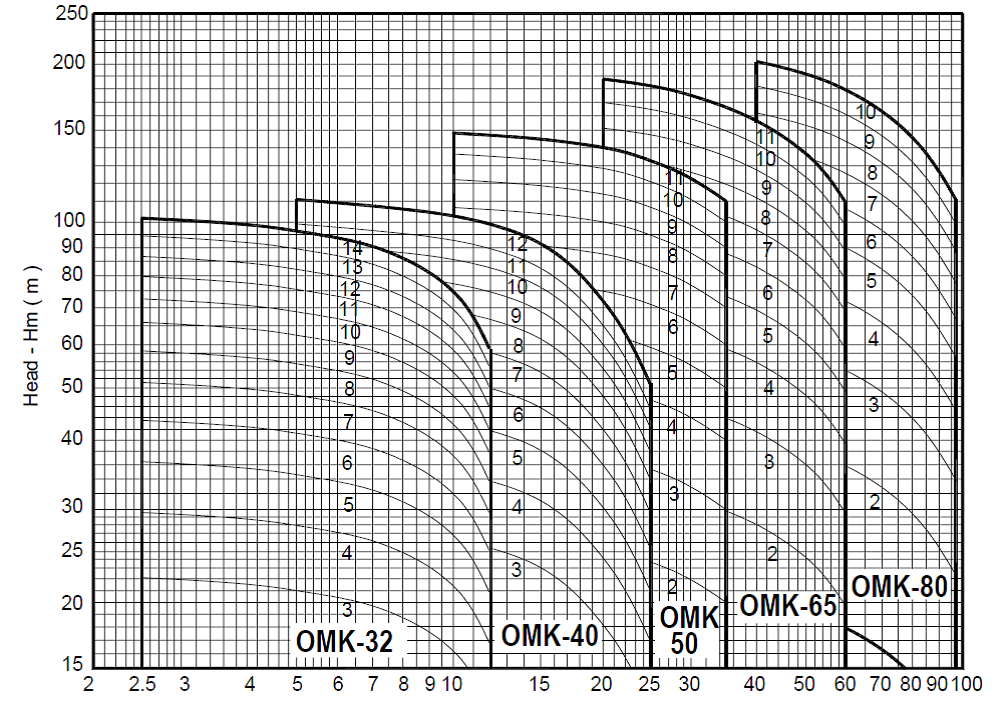

Performance Curves
1450rpm
