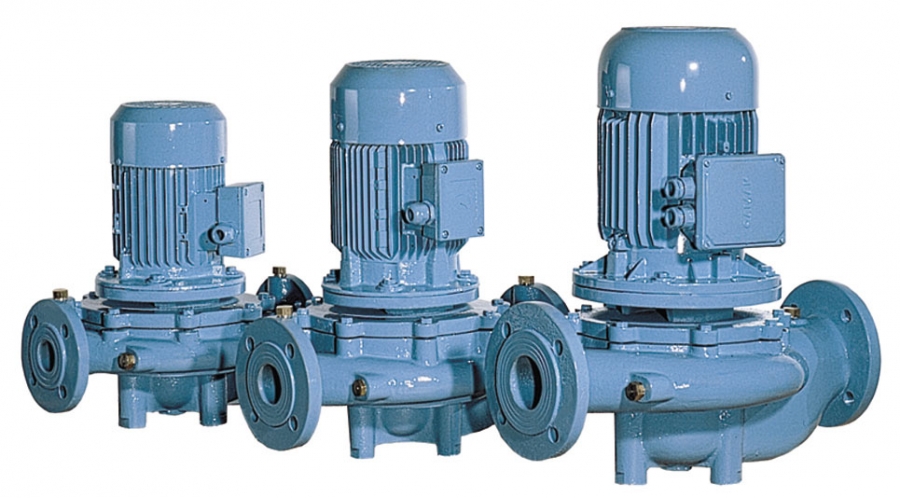

In-Line Centrifugal Pumps

In-Line Centrifugal Pumps
Description:
•    Single-stage inline type centrifugal pumps are produced with standart motors and mechanical seal.
•    Pump flanges are designed in PN 16 pressure category compatible with DIN 2533. The suction and discharge flanges are identical and are on the same axis. Both flanges are equipped with pressure gage tapings.
•    Single entry, closed impeller is equipped with rear rings to balance thrust and is dynamically balanced.
•    Motor is connected to the pump by an adaptor and a flange.
•    Motor shaft is joined to pump shaft by a special clamp. In the case of motors with power over a certain value the pump and the motor shafts are joined by seperate rigid coupling.
•    Pump shaft,motor and other parts can be removed without replacing the suction and discharge flanes and the pump volute. Thus, assembly and maintenance producers are carried out very easily.
•    Standart asynchronous motor is used to activate pump.
•    In NMM pumps shaft leakage is prevented by a mechanical seal. All radial and thrust forces are supported by the motor bearing.

Fields of Application
• Water supply and pumping centers.
• İrrigation, sprinkling, drainage processes.
• Tank systems
• Hot - cold water circulation and cooling system
• Pumping of condensed water
• Swimming pool water circulation.
•Industrial and domestic fluid pumping processes
•Marine applications.

Technical Specifications
Flow Rate: (m³ / h) 2 ... 500
Head: (m) 2 ... 100
Operating Pressure: 10
Motor Speed Range: (d / d) 900 ... 3600
Suction Flange:DN40 ... DN200 (PN16) (DIN 2535)
Discharge Flange: DN 40 ... DN200 (PN16) (DIN 2535)

In-Line Centrifugal Pumps
INH-D Series – In Line Centrifugal Pumps
Twin Head Mounted In-Line Pumps

Description:
•    INH-D series twin head mounted, in-line type centrifugal pumps.
•    Special design composed of a common collector and integrated check valves at each pump exit that provides independent operation.
•    In case of failure of the pump the second pump goes into operation, so the process does not come to a halt.
•    Single suction, closed type impeller is equipped with rear rings to balance thrust and is dynamically balanced.
•    Maintenance-Repair processes are very easy due to the back pull-out design.
•    Standart asynchronous motors are used to set pump in motion.
•    The pump shaft is coupled with the motor shaft by means of a special clamp. This coupling makes it easy to dismantle the pump without removing the motor.

Fields of Application:
•    HVAC systems
•    Industrial plants
•    Swimming pools Horizontal High Pressure Multistage Centrifugal Pumps
•    Geothermal plants

Technical Specifications :
 Flow Rate: (m³ / h) 2 ... 280
 Head: (m) 2 ... 16
 Operating Pressure: 10bar
 Operating Temperature: (° C) -10 ... 1110
 Motor Speed Range: (d / d) 900 ... 3600
 Suction Flange: DN 40 ... DN 150 (DIN 2533)
 Discharge Flange: DN 40 ... DN 150 (DIN 2533)
