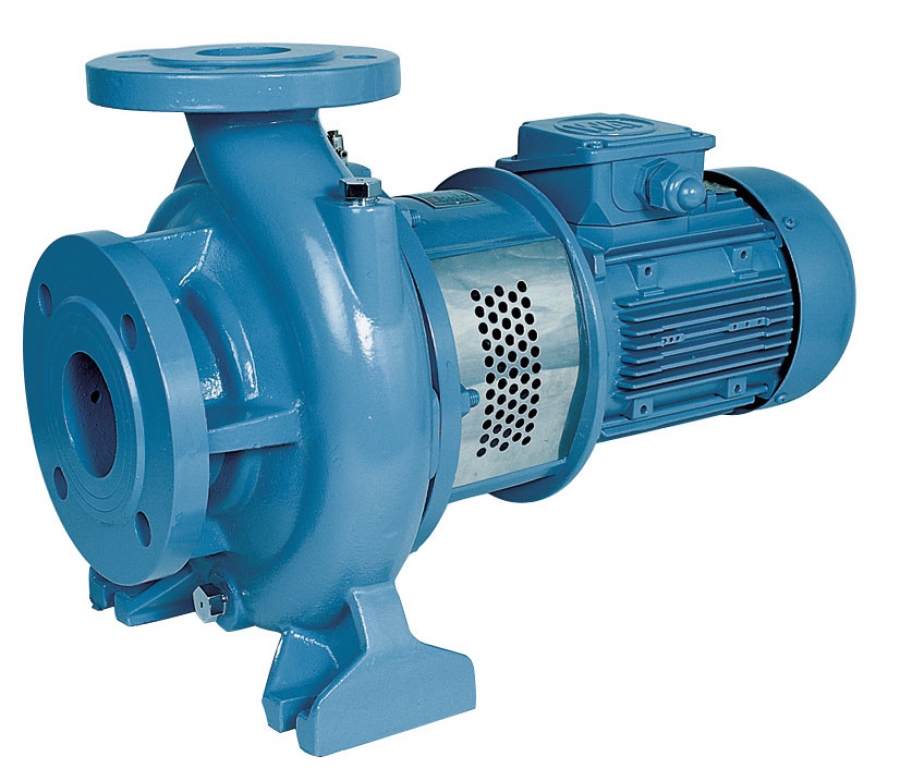

Mono block End Suction - NMM (HMH) Series Pumps

Description:
•    HMH series pumps are single stage, end-suction, mono-block type centrifugal volute pumps.They are standard standart production wiyh enclosed impeller and mechanical seal.
•    Basic dimensions and flow rate EN 733 (DIN 24255) are compatible with proposed values.
•    The thrust (axial force) acting on the motor is compensated by means of the abrasion gasket and balancing holes.
•    Motor and pump are two separate components and there are two shafts. The motor shaft is joined to the pump shaft by a special clamp. In the case of motors with power over a certain value the pump and the motor shafts are joined by seperate rigid coupling.
•    Maintenance - repair processes are very easy due to the back pull-out design.
•    Effective use of common parts in the design of the HMH series facilitates spare parts acquisition and delivery times.
•    Standart asynchronous motors are used for propulsion.
•    In HMH pumps shaft leaking in prevented with a mechanical seal. All radial and axial thrust forces are supported by the motor bearing.

Fields of Application
Agricultural Irrigation and Drainage
Building Systems
Chemical Industries
Food and Beverage Industries
Heating Cooling Conditioning
Iron and Steel Industries
Oil Industries
Power Plants
Water supply and pumping centers.
Tank systems
Hot - cold water circulation and cooling system
Pumping of condensed water
Swimming pool water circulation.
Marine applications.

Pumped Liquids
Thin, clean, non-aggressive and non-explosive liquids free from large solid particles or fibres.
