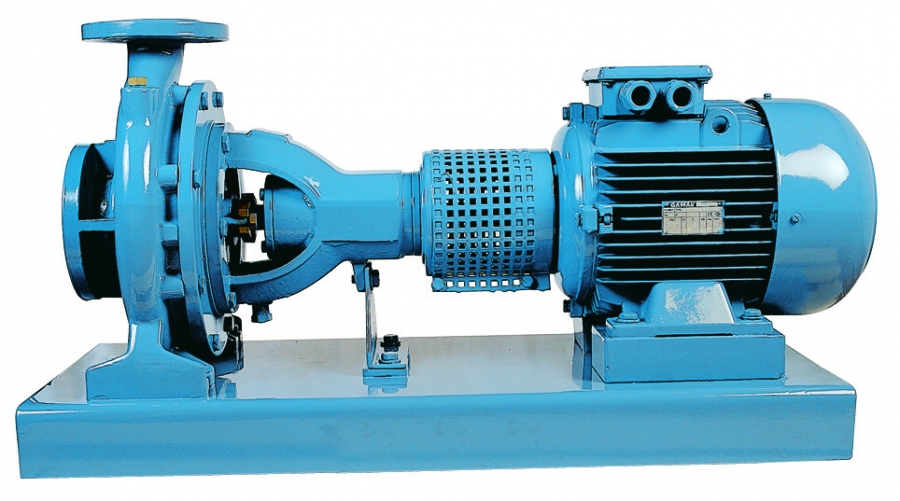

End Suction Pumps

Description:
• single-stage, end-suction centrifugal volute pumps.
• Main dimensions, compatible with EN 733 (DIN 24255) norm.
• Single suction with closed impeller and thrust balanced by means of counter-balancing holes and back wear rings, thus acquiring a dynamic balance.
• The Pump and the motor have a standart connection to the common base plate with a flexible coupling. Maintenance and repair procedures are easily carried out since the pump fixtures can be removed with the volute body.
• Use of extended coupling also enables the removal of the pump fixtureswithout moving the motor or the volute body.
• The series has been designed so that parts are easily replaced and standardized. The entire series şs made uf of only 6 bearings and 10 shaft types, thus simplifying spare parts procurement.
Fields of Application
Water supply and booster stations.
Irrigation, overhead irrigation and draining.
Circulating of hot and cold water in central heating and air-conditioning installations.
Pumping of condensate.
Water circulating for swimming pools.
Sanitary and cleaning installations.
For industrial applications and public services.
Fresh water supply on ships.
Pumped Liquids
Thin, clean, non-aggressive and non-explosive liquids free from large solid particles or fibres. Design
•    Single-stage, end suction, centrifugal volute pump,
•    Main dimensions according to  EN 733 (DIN24255).
•    In addition to 25 basic sizes conforming to norms, we have developed 19 additional sizes. So we have 44 sizes of pumps.
•    Single entry, closed impeller is hydraulically thrust compensated and dynamically balanced.
•    Pump and motor are separate components, connected to each other via a flexible coupling and mounted on a common base plate.
•    Maintenance is very much easier, the impeller shaft and other rotating parts being removable with no need to disconnect the suction and delivery pipes.

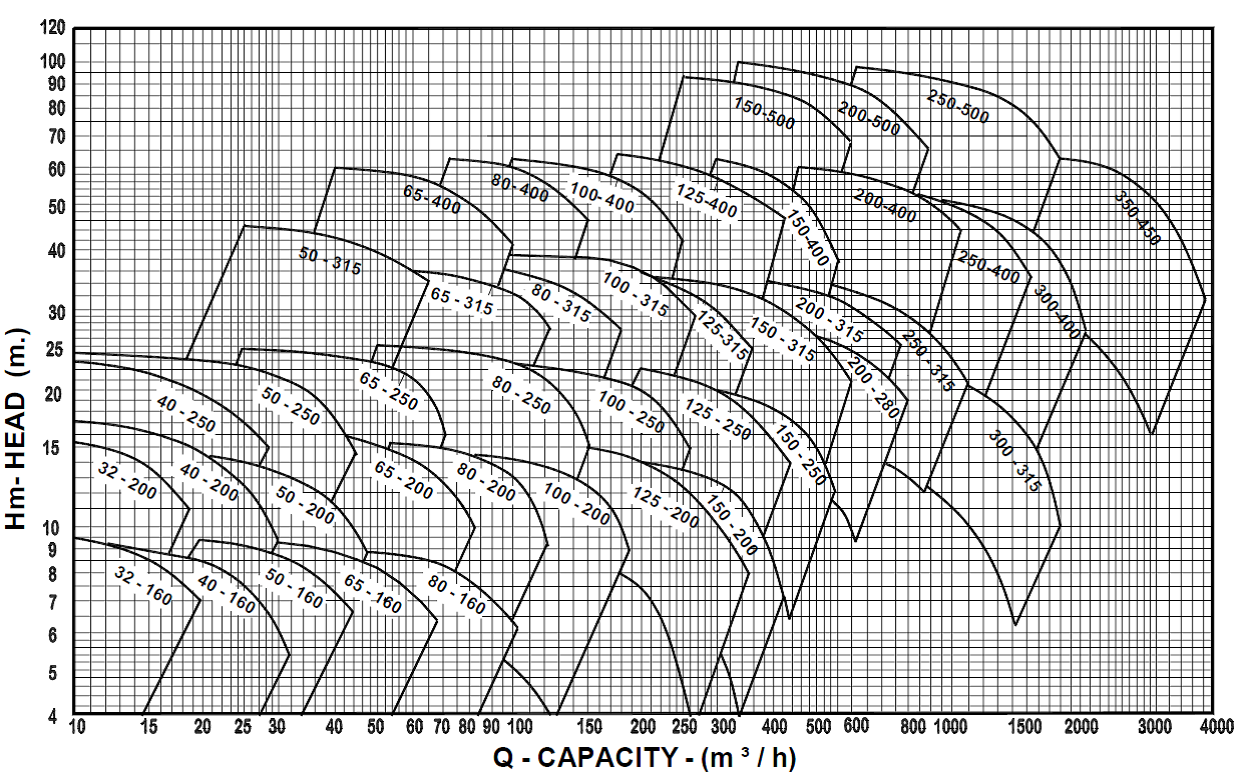

Performance Curves
