Description:

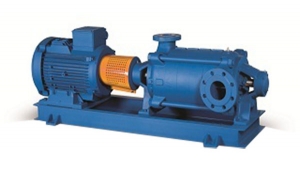

•    HMK series pumps have horizontal axis.
•    Pump impellers are dynamically balanced, single-entry and closed type. The impeller is situated between bearings on either side at HMK series.
•    Back wear rings can be changed if necessary.
•    Both series are consists of 5 types which are 32,40,50,65 and 80. Stage number varies between 2 to 14 at HMK series.
•    Suction and discharge flanges are PN40 compatible with DIN 2535 at HMK series. BS, ANSI or other standart flange sizes can be obtained if necesssary.
•    Standart assembly has the discharge flange at the motor end with disharge flange facing upwords and suction flange and the dead end facing towards rigth and rotating clockwise at HMK series. Alternative assembly is possible upon request.
Description:

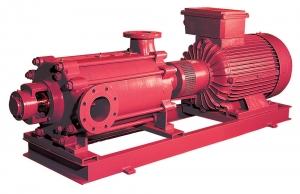

•    HME series pumps have horizontal axis, radial separable body and are multistage centrifugal pumps that can be dismantled in stages.
•    Closed type impellers are situated between bearing and are balanced dynamically.
•    Impeller balance is achieved with back wear rings and balance holes. A balance disc or drum can be used for very high pressures.
•    HME series includes 5 types depending on stage number, rotation speed, maximum flow rate and vary between 2-15 stages.
•    In standard manufacture, the pump and the motor are connected by means of a flexible coupling on a single base  plate. In standart assembly the discharge port is at the other side with flange oriented towards the left. Alternative  Designs can be obtained upon request.
•    Suction and discharge flanges can be situated on the left, right and on the top. On special order, the suction flange can be positioned at the motor end. In that case motor rotation would be in a counter-clockwise direction.
