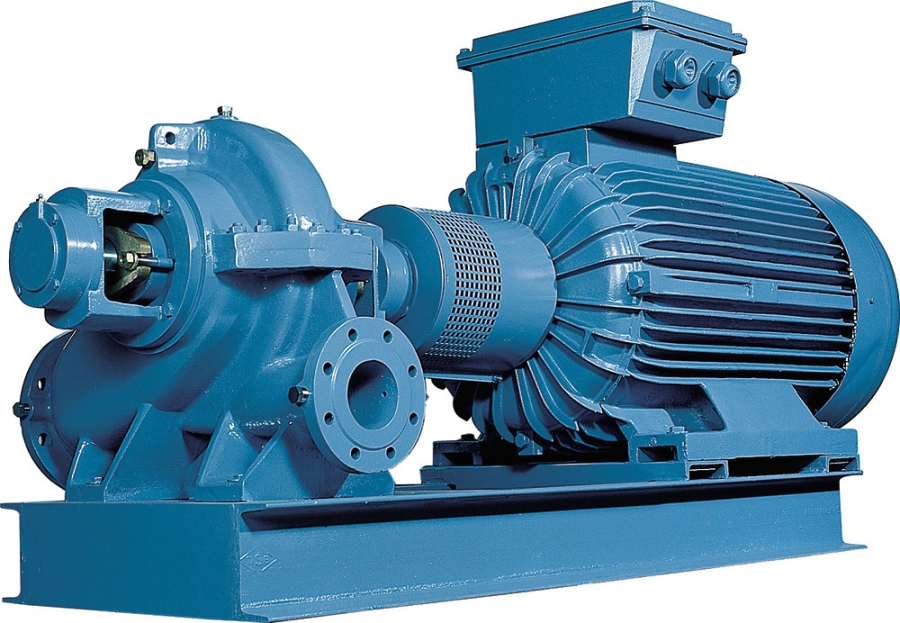

SPLT (U-SPLT )Series Double Suction Pumps

SPLT (U-SPLT )Series Double Suction Pumps
Description:
•    Single-stage, axially split casing, double-suction pumps.
•    Double entry radial impeller has hydraulic thrust compensation.
•    Suction and discharge flanges are along the same line.
•    Upper body is lighter than the lower body and joins it in such a waythat it is easily assembled.
•    Double suction pumps have the advantage of low NPSH (net positive suction head) features.
•    U-SPLT-Long type: heavy service type. Is suitabel for soft gasket application and the use of a mechanical seal is optional.

Fields of Application
•    Water supply and booster stations.
•    Water purification processes.
•    Industrial washing
•    Fire fighting systems
•    Industrial and public applications
•    Marine and metallurgy sectors, power plants.
•    Agricultural irrigation systems
•    General application in refineries.

Pumped Liquids
Thin, clean, non-aggressive and non-explosive liquids free from large solid particles or fibres.
Technical Specifications :
Flow Rate :( m³ / h) 30... 4000
Head:(m) 10 ... 160
Operating Pressure: 16 ... 20
Operating Temperature:(° C) -10 ... 110
Motor Speed Range: (d / d) 960 ... 3500
Suction Flange: DN 80 ...DN 500
Discharge Flange: DN 65 ...DN 500
